Product introduction:

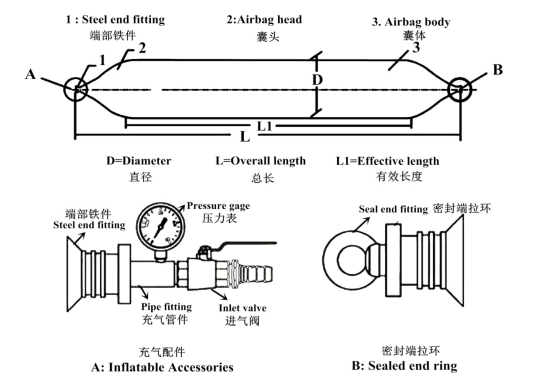

Structure：
“XINCHENG” heavy lifting Airbags’ structure is consists of the outer rubber layer synthetic cord reinforced rubber layers and inner rubber layer.
Its shape characteristics: central body cylindrical + tapered on both ends.
Cord layers: 4,5,6,7,8,9,10, layers
Accessories: Pressure gage, Inlet valve, Pipe fitting and seal end ring.

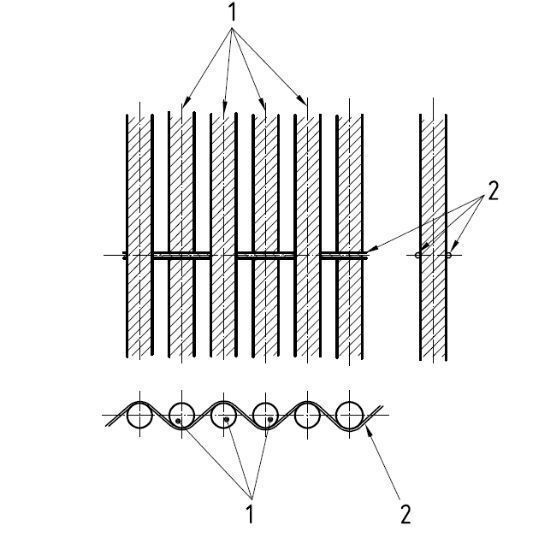

Synthetic-tyre-cord
1. Wrap threads that run vertically through the synthetic tyre-cord pattern.
2. Weft threads that run perpendicular to the warp threads.
Size & Specification:
Standard size of heavy lifting airbags:
Diameter (D): 0.8m-2.0m
Effective length (EL): 6.0m-18m
Total Length (TL): 7m-20m
Cord layers: 4,5,6,7,8,9,10, layers
Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | |
Medium Pressure (4-5) | Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 | |
High Pressure (6-8) | Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 | |
NOTE: Other size of airbags are also available follow customer’s request.
